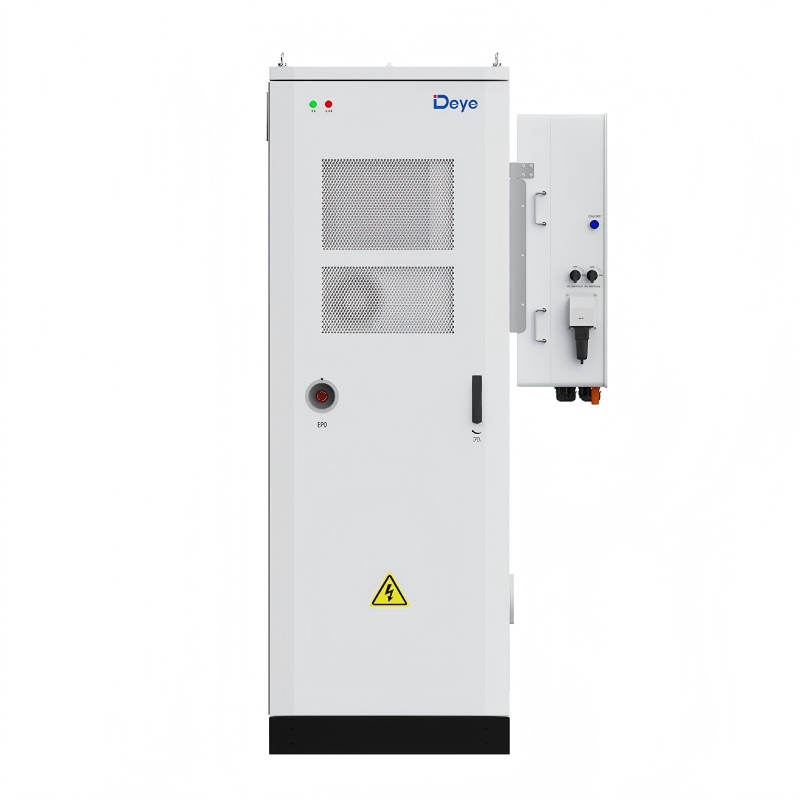

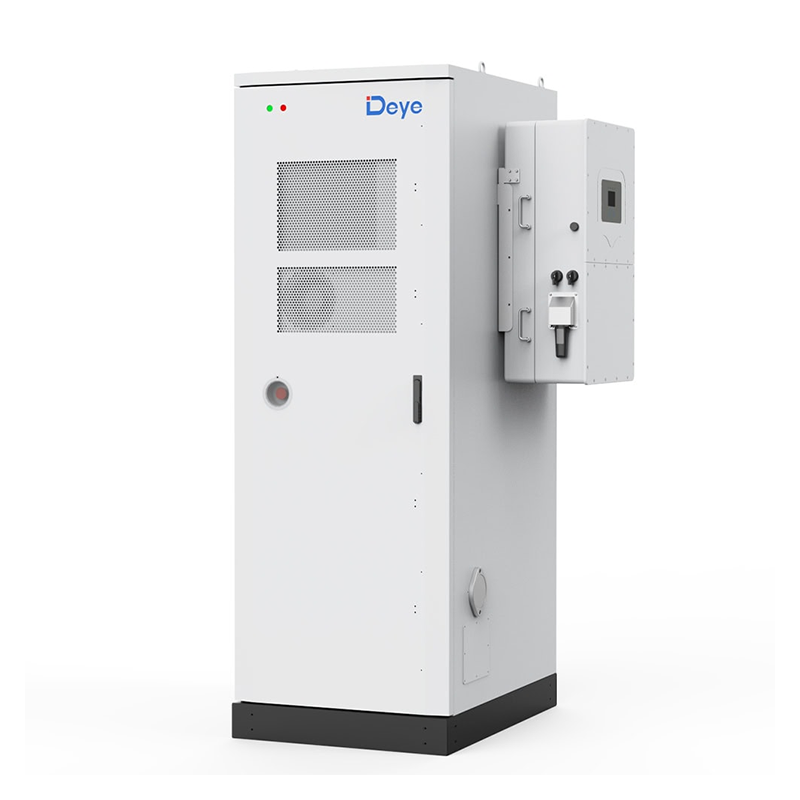

Deye GE-F60 is a high-performance all-in-one energy storage solution designed by Deye. It consists of 12pcs of lithium iron phosphate (LFP) battery modules, each rated at 5.12kWh (100Ah), delivering a total usable capacity of 61.44kWh.This system seamlessly integrates a Battery Management System (BMS), an Energy Management System (EMS), and a hybrid inverter into a single unit. It supports black start and stable off-grid operation, making it a versatile solution for various applications, including commercial & industrial (C&I) projects and large residential homes.
Nombre de la marca :
DeyeModel Number :
Deye GE-F60Rango de poder :
60-360KWHGrid Type :
Hybrid/Off-gridNúmero de ciclos :
6000Tipo de Batería :
LiFePO4temperatura de operacion :
-40-60℃Cooling :
Air coolingDimensions (W*D*H) :
783×1059×2235 mmGrado de protección :
IP55
The system operates over a wide voltage range from 480 to 700 V, with a nominal voltage of 614.4 V. Recommended charge/discharge current is 50 A, nominal current is 100 A, and peak current reaches 125 A. Integrated electronics include an EMS, a hybrid inverter, and a BMS, which work together to optimize performance and ensure operational safety. The system is scalable and can be expanded up to 360 kWh for larger installations.
For active safety, it is equipped with aerosol fire suppression, along with combustible gas, smoke, and temperature detection, supported by active exhaust and an alarm. The rugged enclosure is rated IP55, providing protection against dust and water ingress.
--------------占位---------------

High usable capacity: 61.44 kWh total / 55.29 kWh usable
Modular Design:

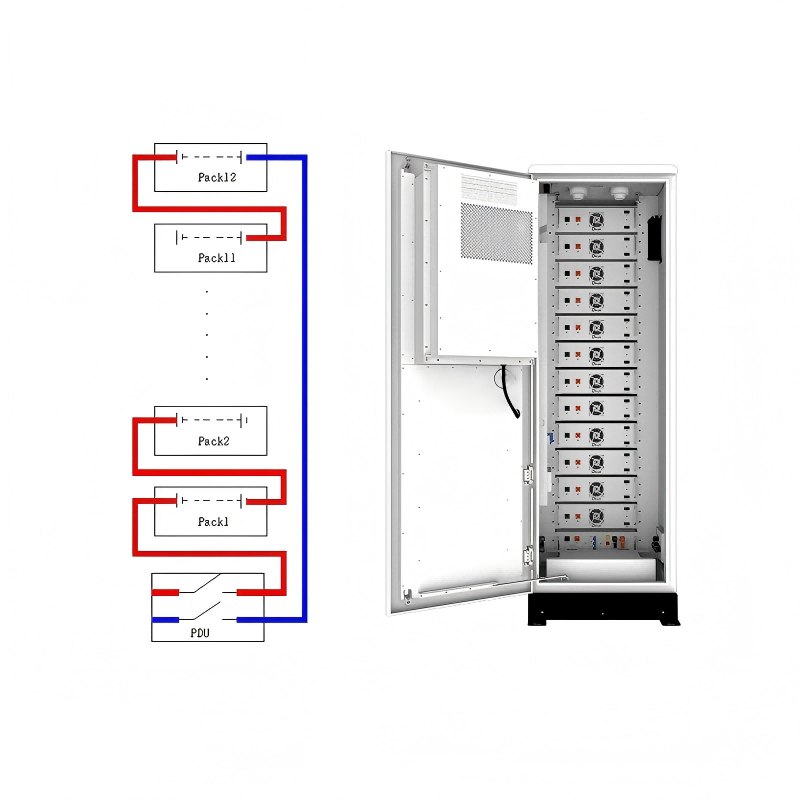

12 battery modules connected in series
Each module rated at 5.12 kWh / 100 Ah
Electrical Characteristics:
Voltage range: 480–700 V (614.4 V nominal)
Charge/discharge current: 50 A (recommended), 100 A (nominal), 125 A (peak)
Integrated Intelligence:
Built-in EMS, hybrid inverter, and BMS to optimize performance and ensure safety
Scalability: expandable up to 360 kWh for larger-scale installations

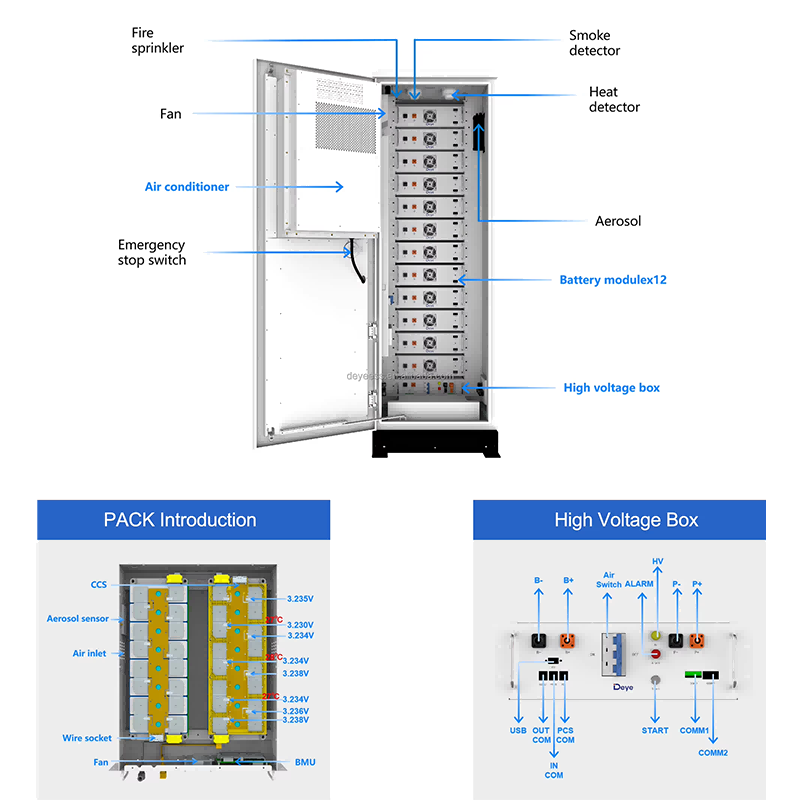

Active Safety Features: Aerosol fire suppression, Detection of combustible gas, smoke, and temperature, Active exhaust system with alarm
Enclosure Protection: IP55-rated for protection against dust and water
