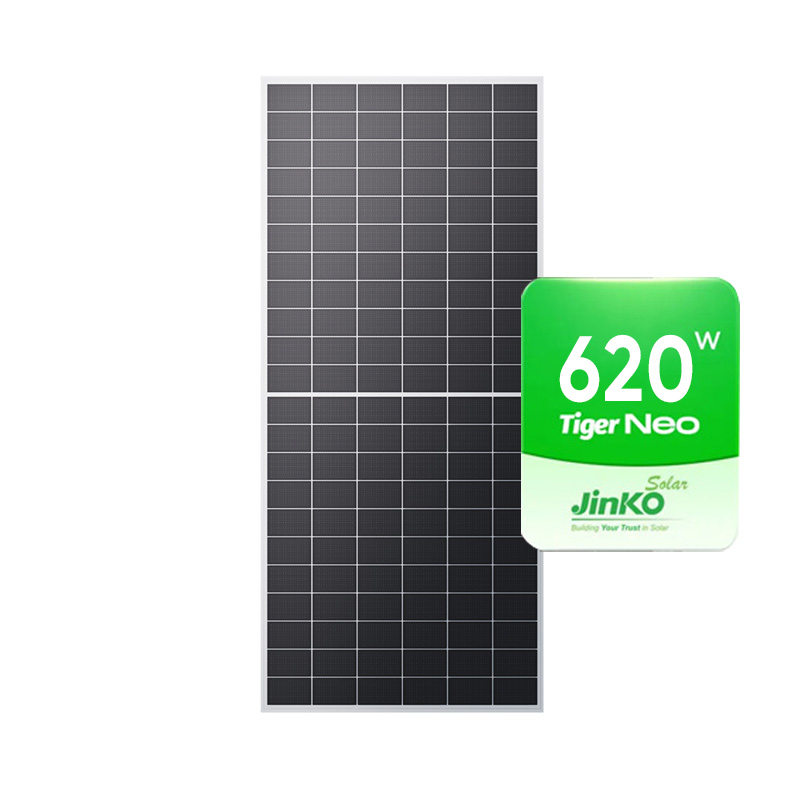

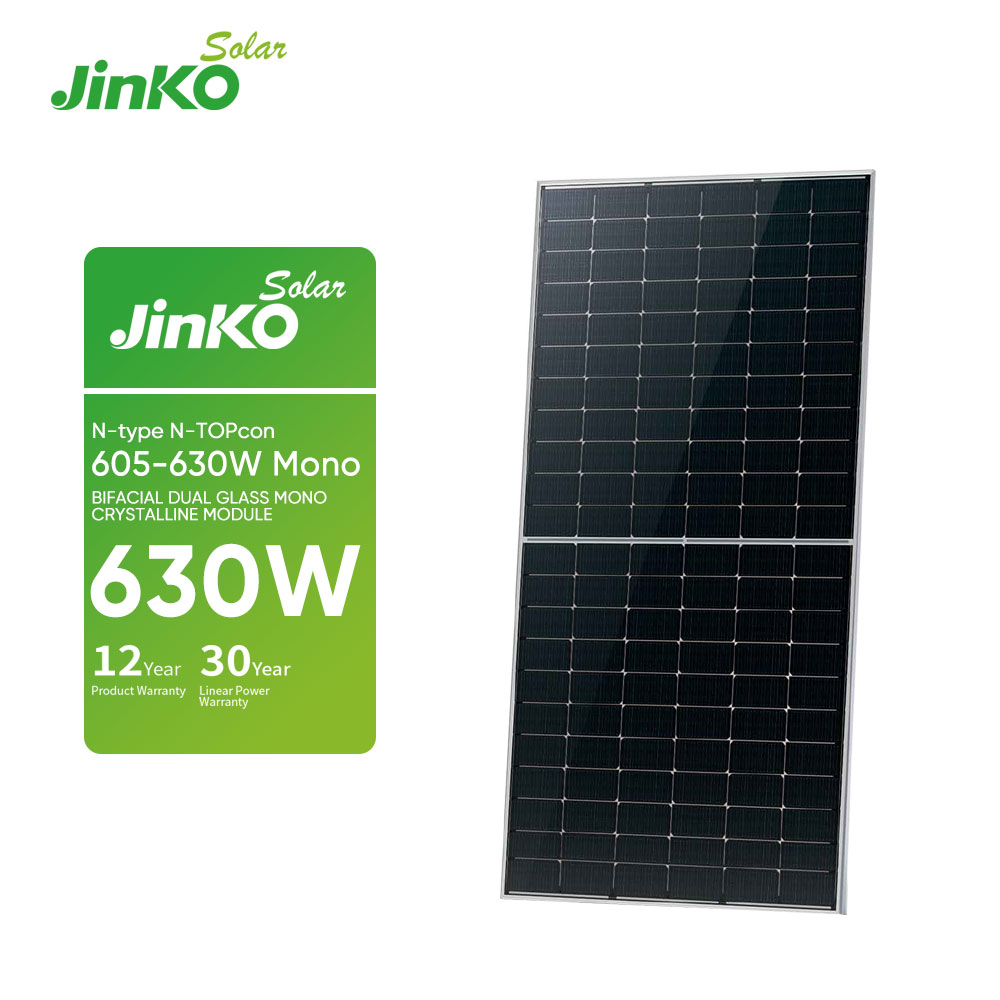

Harness the power of cutting-edge solar technology with the Jinko Solar Tiger Neo 620W Bifacial Double Glass Solar Panel, designed to maximize energy output, durability, and long-term performance for utility-scale projects, commercial installations, and demanding environments.
Nombre de la marca :
JinkoRango de poder :
605-625WDimensiones del módulo :
2465×1134×30mm (97.05×44.65×1.18 inch)Peso :
34.6kg (76.38 Ibs)Vaso :
Double GlassMarco: :
Anodized Aluminium AlloyCaja de conexiones: :
IP68 RatedCable :
TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Lengthmáx. Eficiencia :
22.36%Carga de viento/nieve :
1000W/m2conector :
Wooden BoxNúmero de celdas :
156 (2×78)
-Ultra-High Efficiency & Bifacial Power Generation
620W Output: Advanced N-type TOPCon cell technology delivers exceptional conversion efficiency, ensuring superior energy yields even in limited space.

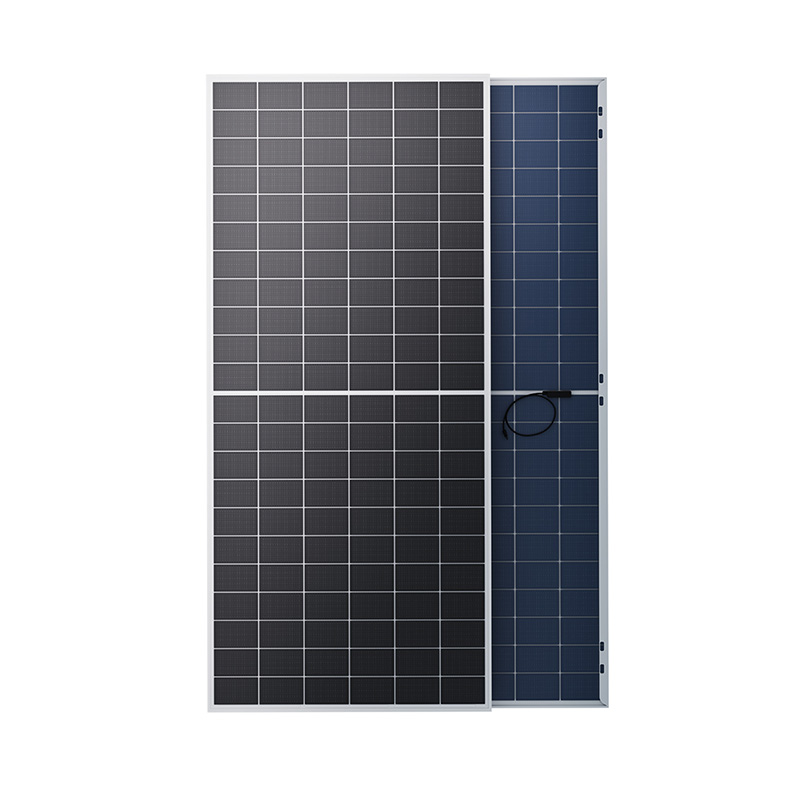

Bifacial Design: Captures sunlight on both sides, generating up to 20%+ additional energy from reflected light (rear-side gain varies by installation conditions)
-Robust Double Glass Construction
Durability: Frameless design with 2mm tempered glass on both sides enhances mechanical strength, resistance to PID (Potential Induced Degradation), and corrosion.
Weatherproof: IP68-rated, withstands extreme temperatures (-40°C to +85°C), heavy snow loads (up to 6,000Pa), and wind loads (4,000Pa).
-Lower Degradation & Extended Lifespan
Low Temperature Coefficient: -0.29%/°C minimizes efficiency loss in high-heat environments.
Enhanced Longevity: N-type cells and double-glass encapsulation reduce annual degradation to just ~0.4%, ensuring over 30 years of reliable performance.
-Smart Compatibility & Sustainability
Versatile Installation: Compatible with trackers and fixed-tilt systems, ideal for ground-mounted solar farms or industrial rooftops.
Eco-Friendly: Lead-free, low-carbon footprint manufacturing aligns with global sustainability goals.
Why Choose Jinko Solar?
As a global leader in solar innovation, Jinko Solar combines industry-leading R&D with proven quality control. The Tiger Neo 620W bifacial module empowers businesses to achieve higher ROI through unmatched energy density, reduced LCOE (Levelized Cost of Energy), and future-proof performance.
Ideal For:
Large-scale solar farms
Commercial and industrial rooftops
Projects requiring high-wattage, space-efficient solutions
Bifacial：JKM620N-78HL4-BDV
Product Parameters(STC)
| Module Type | JKM605N-78HL4-BDV | JKM610N-78HL4-BDV | JKM615N-78HL4-BDV | JKM620N-78HL4-BDV | JKM625N-78HL4-BDV |
| Maximum Power (Pmax) | 605Wp | 610Wp | 615Wp | 620Wp | 625Wp |
| Maximum Power Voltage (Vmp) | 45.42V | 45.60V | 45.77V | 45.93V | 46.10V |
| Maximum Power Current (Imp) | 13.32A | 13.38A | 13.44A | 13.50A | 13.56A |
| Open-circuit Voltage (Voc) | 55.17V | 55.31V | 55.44V | 55.58V | 55.72V |
| Short-circuit Current (Isc) | 13.95A | 14.03A | 14.11A | 14.19A | 14.27A |
| Module Efficiency STC (%) | 21.64% | 21.82% | 22.00% | 22.18% | 22.36% |
AUTHORIZATION
Jinko Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.
We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
