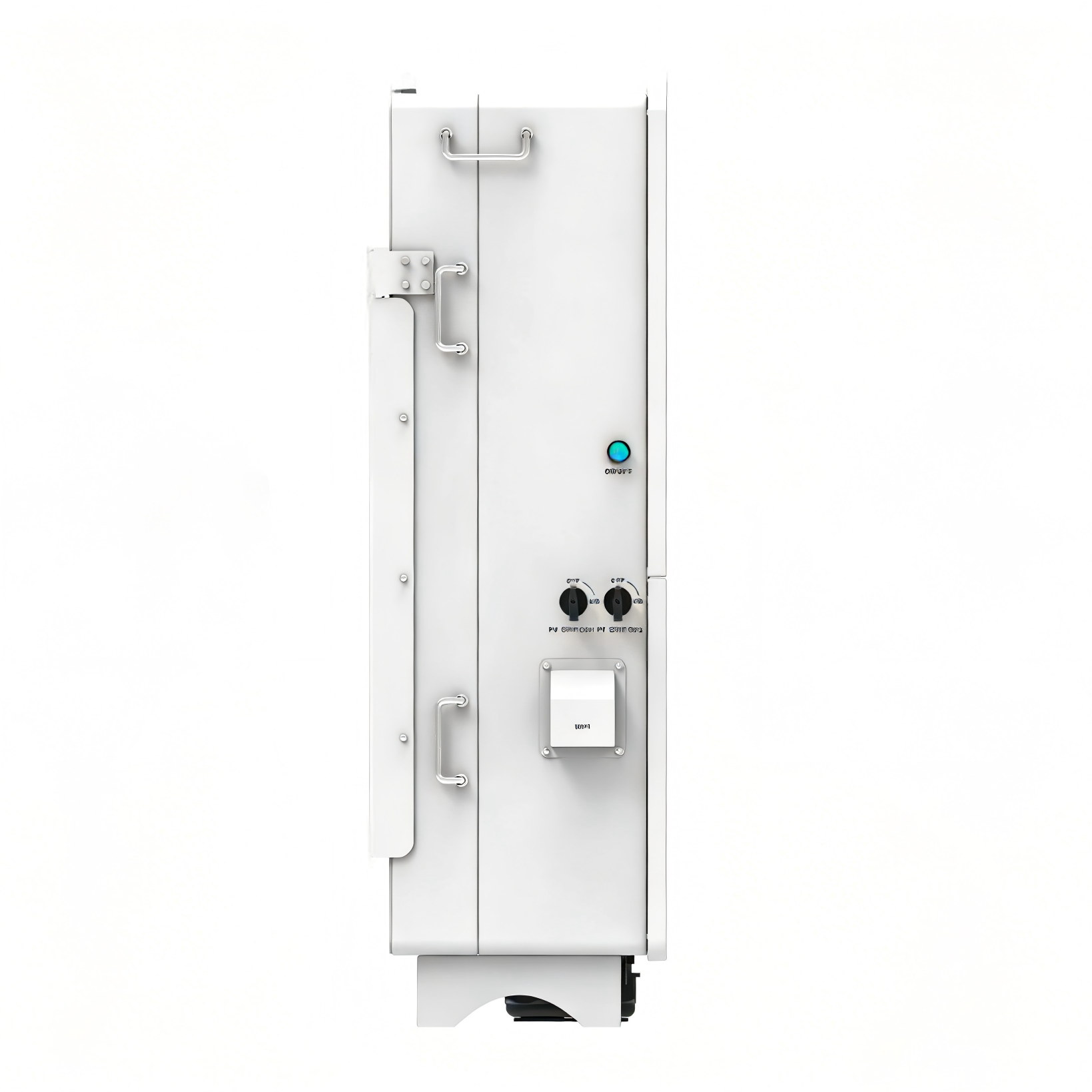

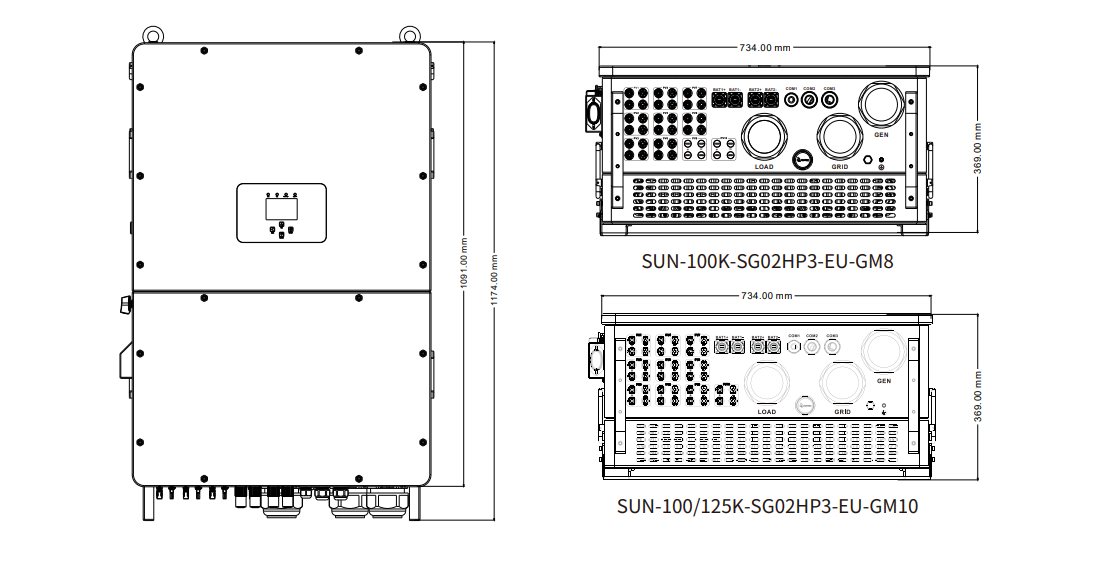

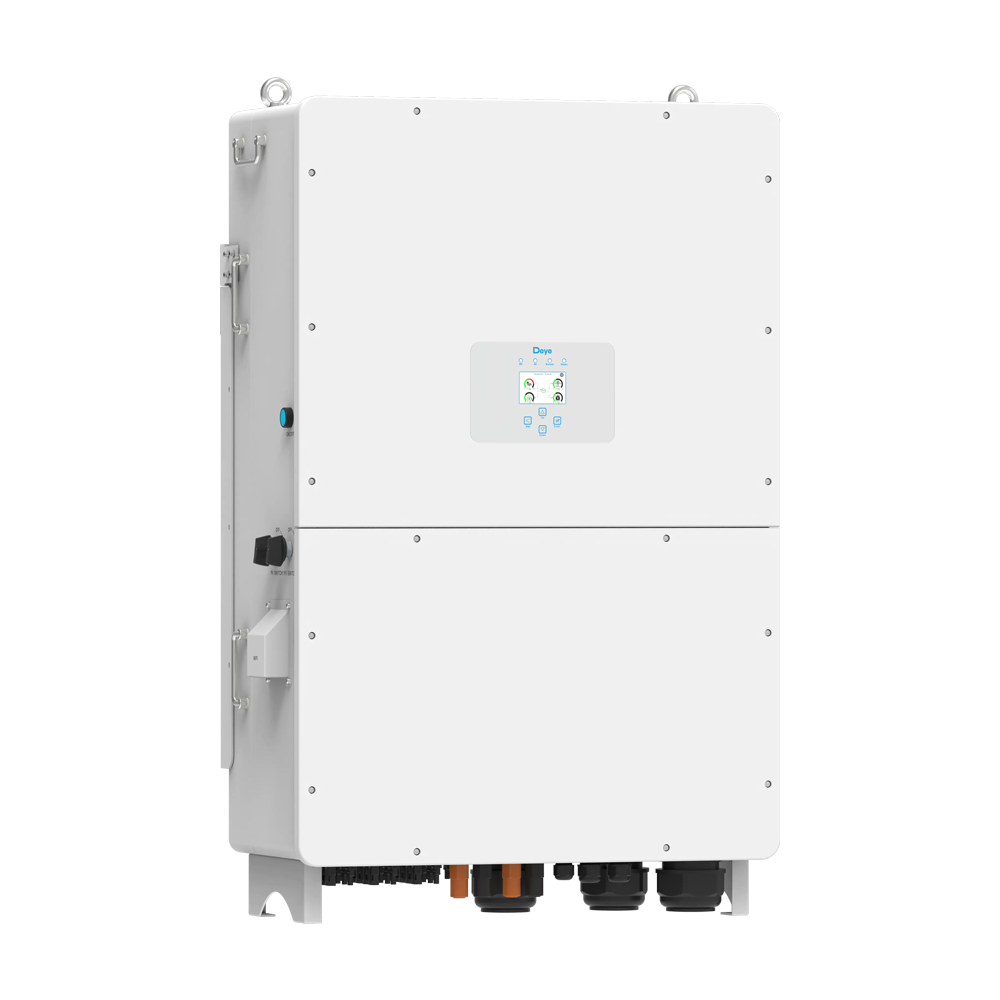

Deye Hybrid Solar Inverter 100kW 125kW 3 Phase SUN-100/125K-SG02HP3-EU-GM8/GM10 for Solar Energy Storage System

Deye Inverter  LCD Display Icons

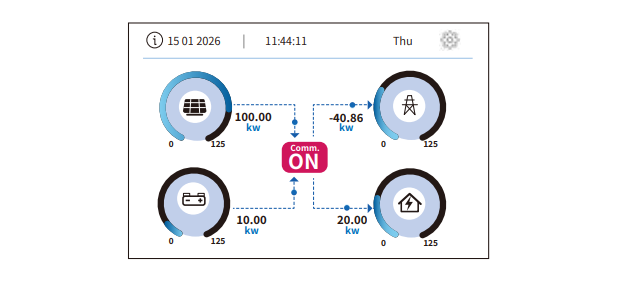

The LCD is touchscreen, below screen shows the overall information of the inverter.

1.The icon at the center of the screen indicates whether the system is under normal operation or not, displaying "ON" for normal status or displaying a code.

2. On the left side of the top of the inverter's LCD screen is the local date and time. To ensure the correct timestamp recording of historical data on the cloud server, please set it to the correct local time or synchronize it with the cloud server during debugging.

3.Click the gear icon in the upper right corner of the inverter's LCD home screen to access the inverter's 'Setting' menu page.

4.The main screen includes the icons for PV(left up), grid (right up), load (right bottom) and battery (left bottom). It also displays the energy flow direction by moving dots. When the power is approaching to a high level, the color on the panels will change from black to blue, showing vividly the system status on the main screen.

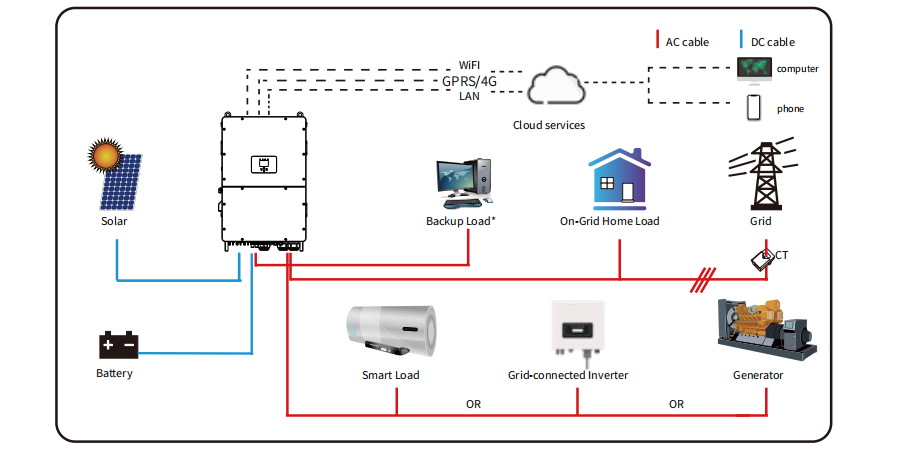

Some clarifications about the system status are as follows:

-PV power will always be positive.

-In single inverter system, load power will always be positive. In a parallel system, the load

power may be negative, which means that the other inverters supply power to this inverter

through the load port.

-A negative Grid power means energy being exported to the grid (sold), whereas positive means

energy being imported form the grid (purchased).

-Negative battery power means charging, positive means discharging.
